General data:

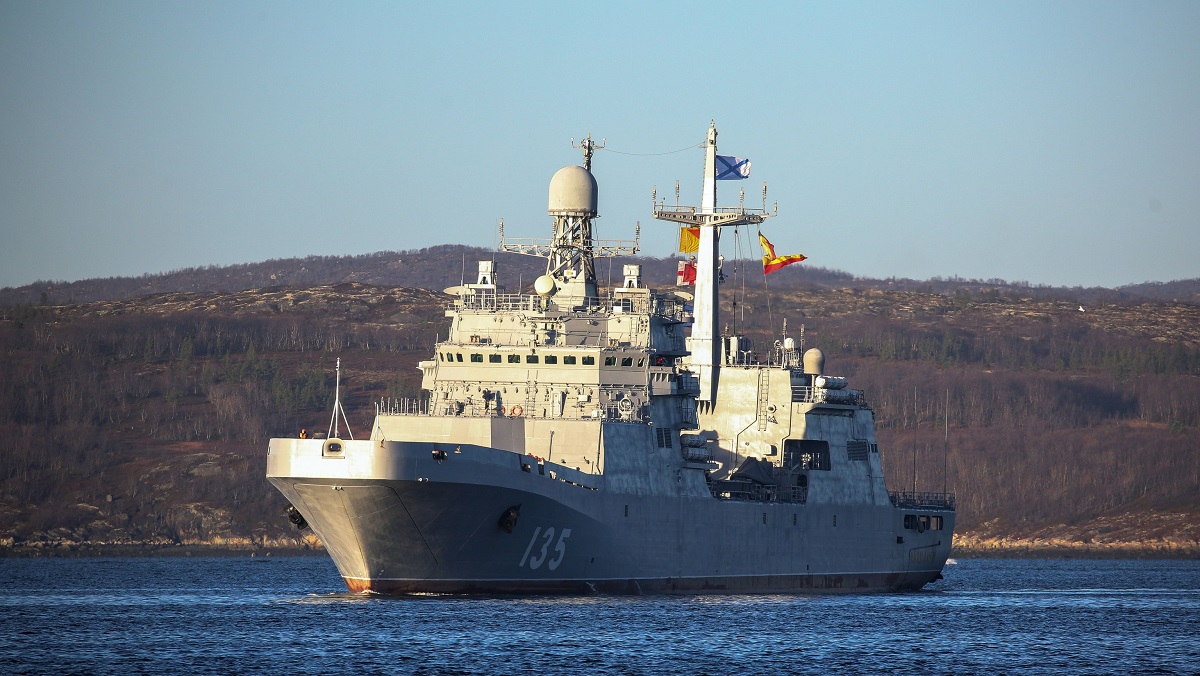

Type: LPD - Amphibious Transport Dock Vessel Max Speed: 18 kt
Crew: 100 Length: 128.0 m
Beam: 16.5 m Draft: 3.6 m
Displacement Full: 6000 t Displacement: 5080 t
Operator: Navy Commissioned: 2014
Propulsion: 2x 10D49 Diesels
Sensors / EW:
Fly Screen B - (Helicopter Control, TACAN) Radar
Radar, Air Traffic Control (ATC)
Max Range: 74.1 km
Bass Tilt [Radar] - (Group, 30mm GFCR, Pair of guns) Radar
Radar, FCR, Surface-to-Air, Short-Range
Max Range: 22.2 km
Bass Tilt [Laser Rangefinder] - (Group, 30mm GFCR, Pair of guns) Laser Rangefinder
Laser Rangefinder for Weapon Director
Max Range: 9.3 km
Bass Tilt [TV Camera] - (Group, 30mm GFCR, Pair of guns) Visual
Visual, Weapon Director TV Camera
Max Range: 74.1 km
Wine Glass [MP-407] - (Ex-Football B, Assoc w Half Hat or Bell Bash) ECM
OECM & DECM, Offensive & Defensive ECM
Max Range: 0 km
Half Hat [MP-405] - (Assoc w Wine Glass) ESM
ELINT
Max Range: 926 km
Round House TACAN - (Assoc w Wine Glass) Radar
Radar, Air Traffic Control (ATC)
Max Range: 74.1 km
Cross Round [MR-352 Positiv ME-1] - (Assoc w Wine Glass) Radar
Radar, Target Indicator, 3D Surface-to-Air & Surface-to-Surface
Max Range: 129.6 km
Palm Frond [MR-231-3] - (2013, Mod MR-212 Nyada) Radar
Radar, Surface Search & Navigation
Max Range: 92.6 km
Weapons:
PK-10 Chaff [SR-50] - (1990, 120mm) Decoy (Expendable)
Surface Max: 1.9 km.
PK-10 Flare [SO-50] - (1990, 120mm) Decoy (Expendable)
Surface Max: 1.9 km.
AK-630M 30mm/65 Gatling Burst [400 rnds] - Gun
Air Max: 1.9 km. Surface Max: 2.8 km.
SA-N-10 Gimlet [9M313] - (9K310 Igla-1) Guided Weapon
Air Max: 5.6 km.
AK-630M 30mm/65 Twin Gatling Burst [800 rnds] - Gun
Air Max: 1.9 km. Surface Max: 2.8 km.
14.5mm MG Burst [20 rnds] - (Facility/Ship, No Anti-Air Capability) Gun
Surface Max: 1.9 km. Land Max: 1.9 km.
