General data:

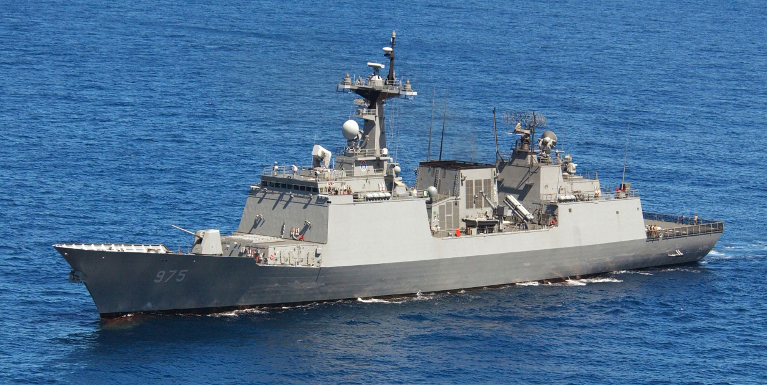

Type: FFG - Guided Missile Frigate Max Speed: 30 kt
Crew: 200 Length: 154.4 m
Beam: 17.4 m Draft: 9.5 m
Displacement Full: 5520 t Displacement: 4400 t
Operator: Navy Commissioned: 2009
Propulsion: 2x MTU 20V 956 TB92 Diesels, 2x General Electric LM-2500 Gas Turbines, CODOG
Sensors / EW:
MW.08 - (1991) Radar
Radar, Target Indicator, 3D Surface-to-Air & Surface-to-Surface
Max Range: 88.9 km
DSQS-23B [CSU 90] - (1991) Hull Sonar, Active/Passive
Hull Sonar, Active/Passive Search & Track
Max Range: 44.4 km
AN/SPS-49(V)5 NTU - (1991) Radar
Radar, Air Search, 2D Long-Range
Max Range: 463 km
K/SLQ-200(V)K Sonata [ECM] - (Argo Phoenix mod, AR-700A) ECM
OECM & DECM, Offensive & Defensive ECM
Max Range: 0 km
K/SLQ-200(V)K Sonata [ESM] - (Argo Phoenix mod, AR-700A) ESM
ELINT
Max Range: 926 km
K/SPS-95K - (1998, Korea, GPS-98K) Radar
Radar, Surface Search & Navigation
Max Range: 200 km
STIR 240 [Radar] - (SM-2) Radar
Radar, FCR, Surface-to-Air & Surface-to-Surface, Medium-Range
Max Range: 138.9 km
STIR 240 [IR Camera] - (SM-2) Infrared
Infrared, Target Tracking and Identification Camera
Max Range: 185.2 km
STIR 240 [TV Camera] - (SM-2) Visual
Visual, Target Tracking and Identification TV Camera
Max Range: 185.2 km
Generic Acoustic Intercept - (SM-2) Acoustic Intercept (Active Sonar Warning)
Acoustic Intercept
Max Range: 66.7 km
SQR-220K TASS - (South Korea) TASS, Passive-Only Towed Array Sonar System
TASS, Passive-Only Towed Array Sonar System
Max Range: 129.6 km
Weapons:
DAGAIE Mk2 LIR Flare - Decoy (Expendable)
Surface Max: 1.9 km.
DAGAIE Mk2 LEM Chaff - Decoy (Expendable)
Surface Max: 1.9 km.
30mm Goalkeeper Burst [240 rnds] - Gun
Air Max: 1.9 km. Surface Max: 2.8 km.
127mm/62 HE-CVT [HiFrag] - Gun
Air Max: 2.8 km. Surface Max: 22.2 km. Land Max: 24.1 km.
127mm/62 HE-PD [HiCap] - Gun
Air Max: 2.8 km. Surface Max: 22.2 km. Land Max: 24.1 km.
127mm/62 WP - Gun
Surface Max: 22.2 km. Land Max: 24.1 km.
RGM-84D Harpoon IC - (1986) Guided Weapon
Surface Max: 138.9 km.
AN/SLQ-25 Nixie - Decoy (Towed)
Surface Max: 1.9 km.
RIM-66M-2 SM-2MR Blk IIIA - (AEGIS VLS) Guided Weapon
Air Max: 92.6 km. Surface Max: 46.3 km.
RIM-116B RAM Blk I - (2001) Guided Weapon
Air Max: 11.1 km.
K-745 Blue Shark [Chung Sang Eo] - (South Korea, 2008, ASW, Chung Sang Eo) Torpedo
Subsurface Max: 5.6 km.
