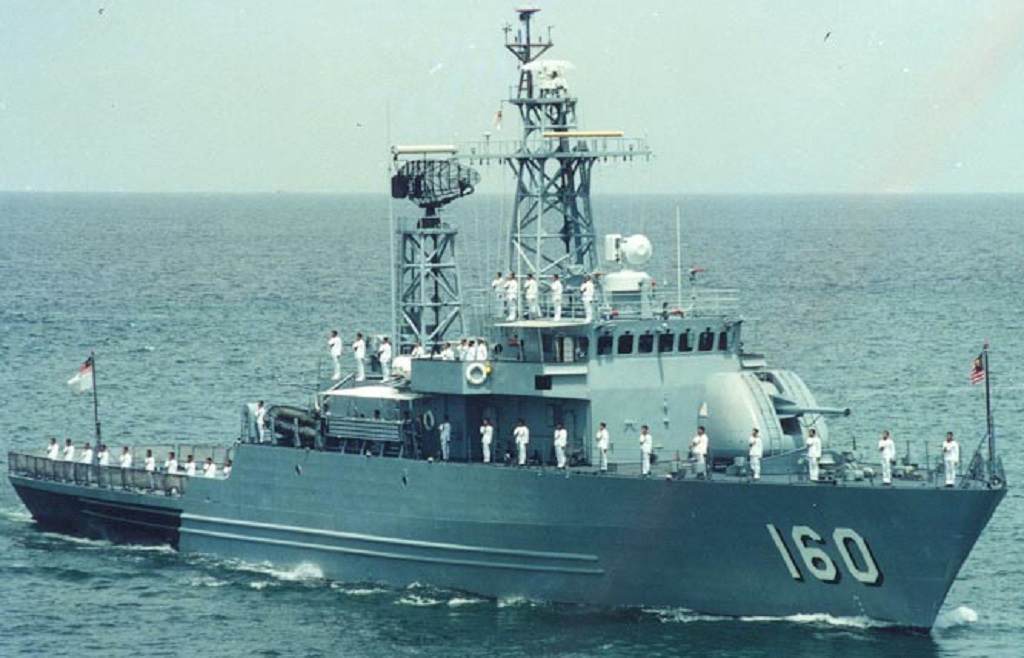

General data:
Type: FFL - Corvette Max Speed: 22 kt
Crew: 66 Length: 75.0 m
Beam: 10.8 m Draft: 3.7 m
Displacement Full: 1300 t Displacement: 1000 t
Operator: Navy Commissioned: 1986
Propulsion: 2x SEMT-Pielstick Diesels
Sensors / EW:
Telegon 4 - (AK 1200) ESM
HF/DF
Max Range: 926 km
Cutlass - (Porpoise, Assoc w Cygnus or Scorpion jammer) ESM
ELINT
Max Range: 926 km
9LV200 Mk2 [Radar] - (Group, PE 727 Radar, 9LV223, 225, 228, 249, ArtE-726) Radar
Radar, FCR, Weapon Director
Max Range: 14.8 km
9LV200 Mk2 [TV Camera] - (Group, PE 727 Radar, 9LV223, 225, 228, 249, ArtE-726) Visual
Visual, Weapon Director TV Camera
Max Range: 148.2 km
9LV200 Mk2 [IR] - (Group, PE 727 Radar, 9LV223, 225, 228, 249, ArtE-726) Infrared
Infrared, Weapon Director Camera
Max Range: 148.2 km
9LV200 Mk2 [Laser Rangefinder] - (Group, PE 727 Radar, 9LV223, 225, 228, 249, ArtE-726) Laser Rangefinder
Laser Rangefinder for Weapon Director
Max Range: 7.4 km
DA.05 [RAWS-3] - (Group, PE 727 Radar, 9LV223, 225, 228, 249, ArtE-726) Radar
Radar, Target Indicator, 2D Surface-to-Air & Surface-to-Surface
Max Range: 237.1 km
Decca 1226 - (Group, PE 727 Radar, 9LV223, 225, 228, 249, ArtE-726) Radar
Radar, Surface Search & Navigation
Max Range: 46.3 km
Weapons:
100mm/55 Model 1968 PFHE - Gun
Air Max: 2.8 km. Surface Max: 13 km. Land Max: 13 km.
100mm/55 Model 1968 HE - Gun
Surface Max: 13 km. Land Max: 13 km.
30mm/75 Twin Oerlikon APDS Burst [20 rnds] - Gun
Air Max: 1.9 km. Surface Max: 2.8 km. Land Max: 2.8 km.
30mm/75 Twin Oerlikon HE Burst [20 rnds] - Gun
Air Max: 1.9 km. Surface Max: 2.8 km. Land Max: 2.8 km.
