General data:

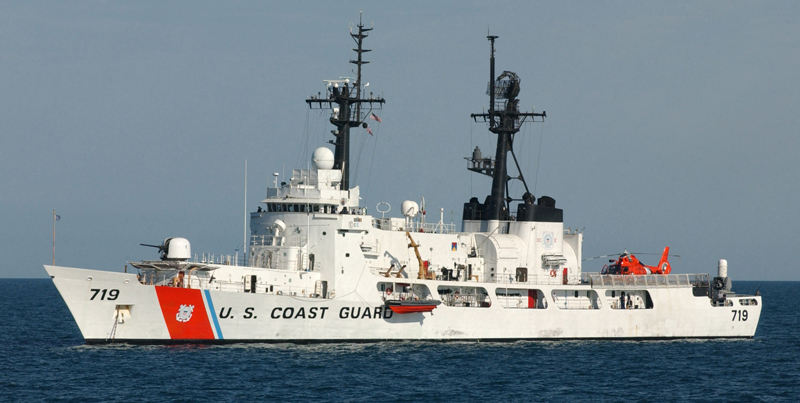

Type: WHEC - Coast Guard High Endurance Cutter Max Speed: 29 kt
Crew: 177 Length: 115.4 m
Beam: 13.1 m Draft: 4.3 m
Displacement Full: 3050 t Displacement: 2716 t
Operator: Coast Guard Commissioned: 1995
Propulsion: 2x Fairbanks-Morse 38TD8-1/8 Diesels, 2x Pratt & Whitney FT4-A6 Gas Turbines, CODOG
Sensors / EW:
AN/SPS-64(V)6 [Raycas 1660 12S] - (60kW, USCG, 1x 50kW + 1x 60kW antenna) Radar
Radar, Surface Search & Navigation
Max Range: 64.8 km
AN/SPS-64(V)6 [RM 1250 6X] - (50kW, USCG, 1x 50kW + 1x 60kW antenna) Radar
Radar, Surface Search & Navigation
Max Range: 64.8 km
AN/SPS-40B - (50kW, USCG, 1x 50kW + 1x 60kW antenna) Radar
Radar, Air Search, 2D Long-Range
Max Range: 407.4 km
Mk92 Mod 1 CAS - (GFCS, WM.28) Radar
Radar, FCR, Weapon Director
Max Range: 118.5 km
AN/WLR-1H(V)5 - (GFCS, WM.28) ESM
ELINT
Max Range: 926 km
Weapons:
76mm/62 Compact HE Burst [4 rnds] - Gun
Air Max: 2.8 km. Surface Max: 11.1 km. Land Max: 11.1 km.
25mm/75 Bushmaster Mod 1 Burst [12 rnds] - Gun
Air Max: 1.5 km. Surface Max: 2.8 km. Land Max: 2.8 km.
20mm/85 Mk15 Phalanx Blk 0 Burst [200 rnds] - Gun
Air Max: 1.5 km.
12.7mm/50 MG Burst [10 rnds] - (Facility/Ship, No Anti-Air Capability) Gun
Surface Max: 1.9 km. Land Max: 1.9 km.
Mk214 Sea Gnat Chaff [Seduction] - (1987) Decoy (Expendable)
Surface Max: 1.9 km.
Mk186 TORCH Flare [Seduction] - (1979) Decoy (Expendable)
Surface Max: 1.9 km.
