General data:

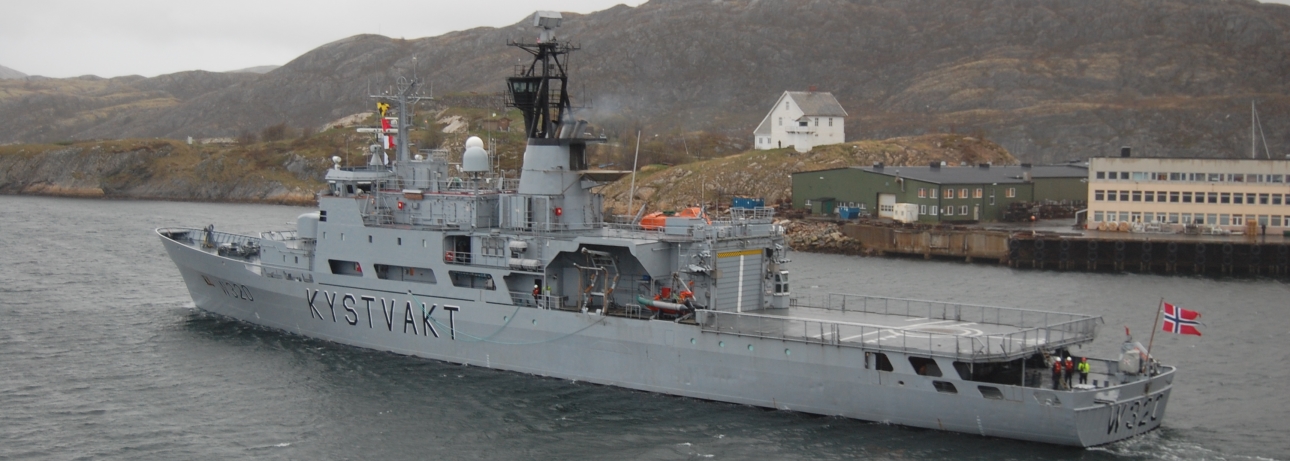

Type: WHEC - Coast Guard High Endurance Cutter Max Speed: 22 kt
Crew: 58 Length: 105.1 m
Beam: 14.6 m Draft: 4.9 m
Displacement Full: 3240 t Displacement: 3000 t
Operator: Coast Guard Commissioned: 1981
Propulsion: 4x Wichmann AXAG Diesels
Sensors / EW:
SS105 - (Norway) Hull Sonar, Active-Only
Hull Sonar, Active-Only Search
Max Range: 5.6 km
AWS.5 - (Norway) Radar
Radar, Air & Surface Search, 2D Short-Range
Max Range: 92.6 km
Decca RM 914 - (Norway) Radar
Radar, Surface Search & Navigation
Max Range: 37 km
9LV200 Mk1 [Radar] - (Group, PE 723 Radar, 9LV202, 212, 218, RAKEL 203, ArtE-722) Radar
Radar, FCR, Weapon Director
Max Range: 14.8 km
9LV200 Mk1 [Laser Rangefinder] - (Group, PE 723 Radar, 9LV202, 212, 218, RAKEL 203, ArtE-722) Laser Rangefinder
Laser Rangefinder for Weapon Director
Max Range: 7.4 km
9LV200 Mk1 [IR] - (Group, PE 723 Radar, 9LV202, 212, 218, RAKEL 203, ArtE-722) Infrared
Infrared, Weapon Director Camera
Max Range: 148.2 km
9LV200 Mk1 [TV Camera] - (Group, PE 723 Radar, 9LV202, 212, 218, RAKEL 203, ArtE-722) Visual
Visual, Weapon Director TV Camera
Max Range: 148.2 km
Decca 1226 - (Group, PE 723 Radar, 9LV202, 212, 218, RAKEL 203, ArtE-722) Radar
Radar, Surface Search & Navigation
Max Range: 88.9 km
Weapons:
20mm/80 Rhinemetall Mk20 Rh202 Burst [20 rnds] - Gun
Air Max: 1.5 km. Surface Max: 1.9 km. Land Max: 1.9 km.
57mm/70 Bofors Mk2 GP Burst [4 rnds] - Gun
Air Max: 2.2 km. Surface Max: 9.3 km. Land Max: 9.3 km.
