General data:

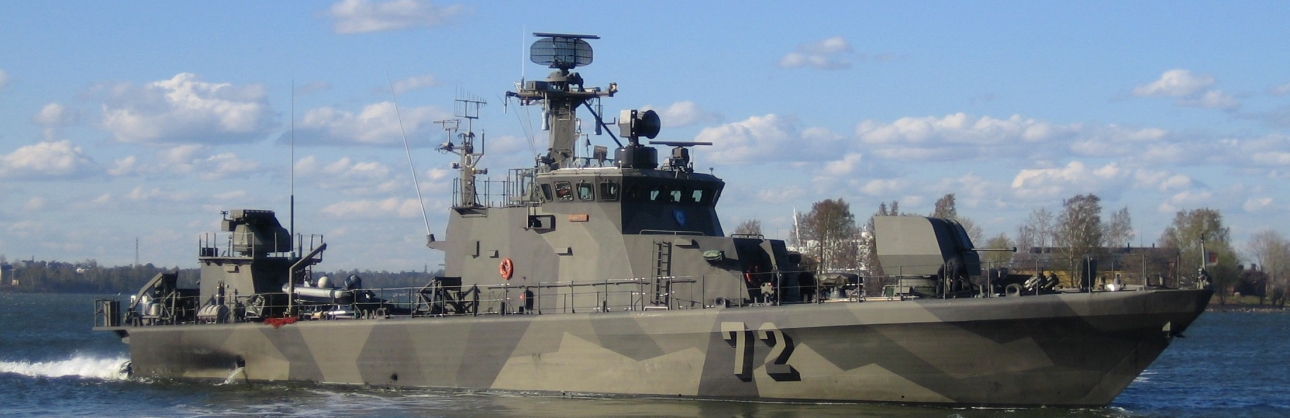

Type: PCFG - Fast Guided Missile Patrol Craft Max Speed: 35 kt
Crew: 19 Length: 48.0 m
Beam: 8.0 m Draft: 0.9 m
Displacement Full: 248 t Displacement: 215 t
Operator: Navy Commissioned: 1990
Propulsion: 2x MTU 16V 538 TB93 Diesels, 2x Riva Calzone IRC 115 Waterjets
Sensors / EW:
Matilda [Simple] - (Protean) ESM
RWR, Radar Warning Receiver
Max Range: 222.2 km
SS240 - (Norway) Hull Sonar, Active-Only
Hull Sonar, Active-Only Search
Max Range: 5.6 km
AR-700A(V)1 - (ASP-2000, Assoc w APECS II) ESM
ELINT
Max Range: 926 km
Generic Navigation Radar - (ASP-2000, Assoc w APECS II) Radar
Radar, Navigation
Max Range: 37 km
Sea Giraffe 150 HC - (1990, CA/SPS-505, PS 76) Radar
Radar, Target Indicator, 3D Surface-to-Air
Max Range: 100 km
CEROS 200 Tracker [9LV Mk3 Basic] - (Group, PE 723 Radar, 9GR400) Radar
Radar, FCR, Surface-to-Air & Surface-to-Surface, Short-Range
Max Range: 46.3 km
EOS 500 [CCD] - (Group, PE 723 Radar, 9GR400) Visual
LLTV, Weapon Director
Max Range: 185.2 km
EOS 500 [IR Camera] - (Group, PE 723 Radar, 9GR400) Infrared
Infrared, Weapon Director Camera
Max Range: 185.2 km
EOS 500 [Laser Rangefinder] - (Group, PE 723 Radar, 9GR400) Laser Rangefinder
Laser Rangefinder for Weapon Director
Max Range: 7.4 km
Weapons:
Philax Chaff - Decoy (Expendable)
Surface Max: 1.9 km.
Philax Flare - Decoy (Expendable)
Surface Max: 1.9 km.
Elma ASW-600 ASW Mortar Salvo [M83 Soft Kill DC, 9 rnds] - (1985) Depth Charge
Subsurface Max: 0.4 km.
40mm/70 Single Bofors Burst [4 rnds] - Gun
Air Max: 2.2 km. Surface Max: 5.6 km. Land Max: 5.6 km.
12.7mm/50 MG Burst [10 rnds] - (Facility/Ship, No Anti-Air Capability) Gun
Surface Max: 1.9 km. Land Max: 1.9 km.
RB 15M Mk1 - (1987) Guided Weapon
Surface Max: 83.3 km.
23mm Twin Burst [20 rnds] - Gun
Air Max: 1.5 km. Surface Max: 1.9 km. Land Max: 1.9 km.
