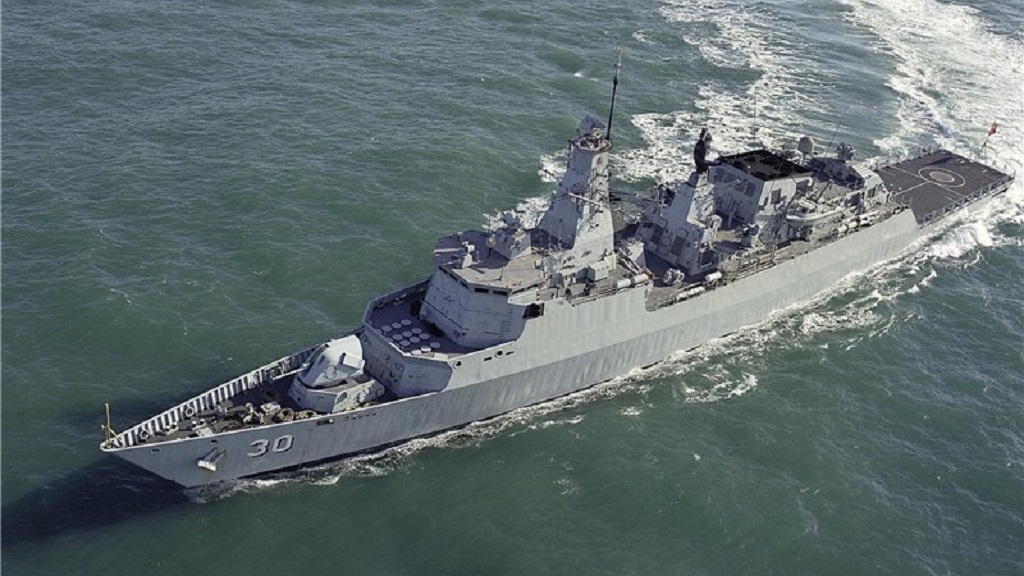

| General data: | |
|---|---|
| Type: FFG - Guided Missile Frigate | Max Speed: 27 kt |
| Crew: 145 | Length: 105.5 m |
| Beam: 12.8 m | Draft: 3.8 m |
| Displacement Full: 2270 t | Displacement: 1845 t |
| Operator: Navy | Commissioned: 2000 |
| Propulsion: 4x MTU 20V 1163 TB93 Diesels |
| Sensors / EW: |
|---|
| DA.08/1 - (Single Beam, PFN 513, AN/SPQ-50) Radar Radar, Air & Surface Search, 2D Medium-Range Max Range: 185.2 km |
| Decca - (Generic) Radar Radar, Surface Search & Navigation Max Range: 37 km |
| RAMSES [RWR] - (Scimitar) ESM RWR, Radar Warning Receiver Max Range: 222.2 km |
| RAMSES [ECM] - (Scimitar) ECM OECM & DECM, Offensive & Defensive ECM Max Range: 0 km |
| Sea Giraffe 150 HC - (1990, CA/SPS-505, PS 76) Radar Radar, Target Indicator, 3D Surface-to-Air Max Range: 100 km |
| V 3901 - (1990, CA/SPS-505, PS 76) Infrared Infrared, Surveillance Camera Max Range: 55.6 km |
| Mentor 2000 - (Sky Guardian 2000) ESM RWR, Radar Warning Receiver Max Range: 222.2 km |
| ST1802SW [Radar] - (Group) Radar Radar, FCR, Surface-to-Air, Short-Range Max Range: 46.3 km |
| ST1802SW [IR] - (Group) Infrared Infrared, Target Tracking and Identification Camera Max Range: 148.2 km |
| TSM 2633 Spherion B Mk2 - (Group) Hull Sonar, Active/Passive Hull Sonar, Active/Passive Search & Track Max Range: 14.8 km |
| Radamec 2400 [EO] - (Group) Visual Visual, Weapon Director & Target Search, Tracking and Identification TV Camera Max Range: 55.6 km |
| Radamec 2400 [IR] - (Group) Infrared Infrared, Weapon Director & Target Search, Tracking and Identification Camera Max Range: 55.6 km |
| Radamec 2400 [Laser Rangefinder] - (Group) Laser Rangefinder Laser Rangefinder for Weapon Director Max Range: 7.4 km |
| Weapons: |
|---|
| MM.40 Exocet Blk II -
(1994) Guided Weapon Surface Max: 66.7 km. |
| Sea Wolf VLS Blk 1 -
Guided Weapon Air Max: 14.8 km. |
| 30mm/75 Single Oerlikon APDS Burst [20 rnds] -
Gun Air Max: 1.9 km. Surface Max: 2.8 km. Land Max: 2.8 km. |
| 30mm/75 Single Oerlikon HE Burst [20 rnds] -
Gun Air Max: 1.9 km. Surface Max: 2.8 km. Land Max: 2.8 km. |
| A.244S -
(1986, NST58) Torpedo Subsurface Max: 5.6 km. |
| Super Barricade Chaff -
Decoy (Expendable) Surface Max: 1.9 km. |
| Super Barricade Flare -
Decoy (Expendable) Surface Max: 1.9 km. |

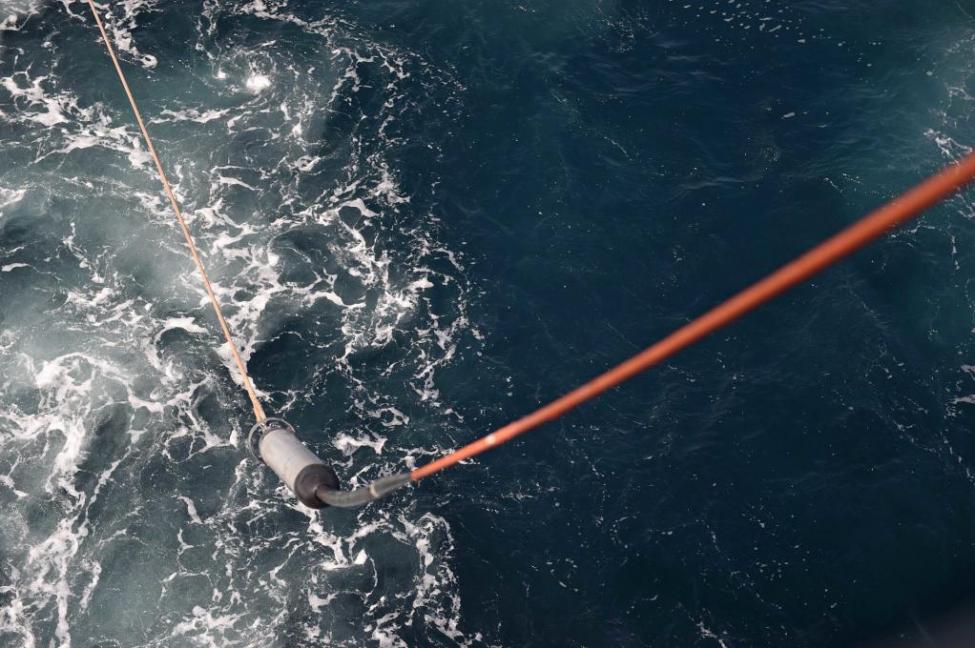

| Sea Siren [Type 182] Towed Torpedo Decoy -
Decoy (Towed) Surface Max: 1.9 km. |
| 57mm/70 Bofors Mk2 GP Burst [4 rnds] -
Gun Air Max: 2.2 km. Surface Max: 9.3 km. Land Max: 9.3 km. |
