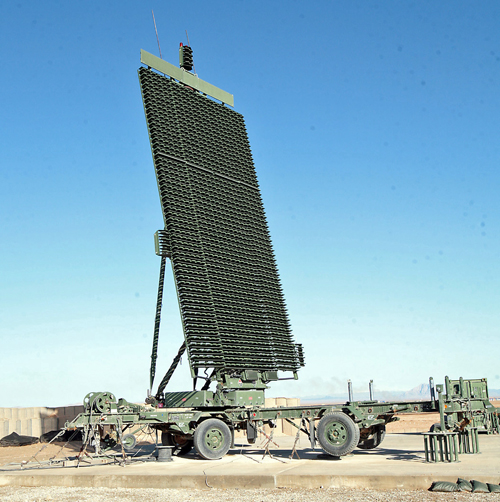

OVERVIEW: The AN/TPS-59(V)3 is an active Electronic Elevation Scanning Array, 3-D, transportable, air search radar that operates in the "D" Band.
DETAILS: The AN/TPS-59(V)3 is used to control air operations, provide long-range surveillance of an assigned airspace, and provide a Tactical Ballistic Missile (TBM) defense capability to the Marine Air Ground Task Force (MAGTF), and is the principal air surveillance radar for the MAGTF. The AN/TPS-59(V)3 will primarily be used to support MAGTF aviation during sustained operations ashore, as part of a joint theater air and missile defense architecture. Weapon systems associated with the AN/TPS-59(V)3 include HAWK and PATRIOT missiles.
Specifications:
Frequency: 1.215-1.4 GHz (D Band (NATO), L Band (IEEE))
Power output: unknown
PRF: unknown
Range Resolution: 1.7 degrees (ABT) 1.85 degrees (TBM) azimuth
On/Off time: unknown
Deploy/Stow Time 240 minutes/ unknown
Detection Range
Max Range (airbreather (ABT)): 555 km
Max Range (TBM tgt): 740 km
NOTES: IOC for AN/TPS-59 in 1985, IOC for V3 upgrade in 1998. The AN/TPS-59(V)3 is transportable on three single-axle trailers, or by helo or C-130. Users include the USMC, Egypt, and Bahrain.
SOURCES: "AN/TPS-59(V)3 Radar Set." GlobalSecurity.org - Reliable Security Information. Accessed March 22, 2015. http://www.globalsecurity.org/space/systems/an-tps-59.htm; Lockheed Martin; The AN/TPS-59(V)3 Tactical Missile Defense Radar System, pg. 2-3, www.radartutorial.eu/19.kartei/pubs/tps-59.pdf ; Defense Industry Daily. "Bahrain Receives TPS-59 Missile Defense Radar." Accessed December 1, 2013. http://www.defenseindustrydaily.com/bahrain-receives-tps-59-missile-defense-radar-04013/ ; Wikipedia. "AN/TPS-59." Accessed December 1, 2013. http://en.wikipedia.org/wiki/AN/TPS-59.
