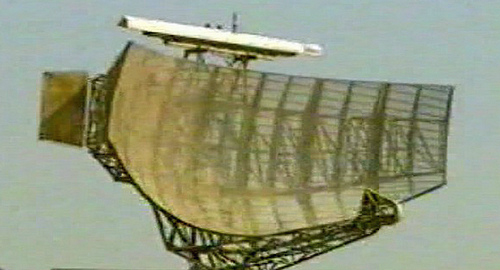

OVERVIEW: The AN/FPS-100 is a fixed, 2-D early warning and ground-controlled interception radar system operating in the "D" Band
DETAILS: The AN/FPS-100 is a modified AN/FPS-20.
Frequency: 1250 to 1350 MHz (NATO D Band)(IEEE: L Band) Power output: 6 KW (average); 2.5 MW (peak) PRF: 350 Hz Range Resolution: 1.85 km (range), 1 degree (azimuth) On/Off time: unknown Deploy/Stow Time N/A Max Range: 322 km
NOTES: The radar family started with the AN/FPS-3 in 1950. The AN/FPS-100 is a modified AN/FPS-20, created by modifying the FPS-20 with a new digital moving target indicator (MTI) system to create the AN/FPS-100 and FPS-100A. The AN/FPS-100 was also upgraded to include a new antenna and a low noise front end. Users include India, Chile, Thailand, Israel and Argentina.
SOURCES: Wikipedia, the Free Encyclopedia. Accessed March 21, 2015. http://en.wikipedia.org/wiki/Bendix_AN/FPS-20 ; http://fas.org/nuke/guide/usa/airdef/an-fps-20.htm ; Bendix Corp, "AN/FPS-20Q Radar, Oceana NAS," http://www.radomes.org/museum/documents/NAS%20Oceana%20%20AN-FPS20%20Description.pdf ; "Radar Basics - AN/FPS-20." Grundlagen Der Radartechnik. Accessed April 5, 2015. http://www.radartutorial.eu/19.kartei/karte814.en.html. ; "USAF Air Defense Radar Equipment." Radomes, Inc. - The Air Defense Radar Veterans Association. Accessed April 5, 2015. http://www.radomes.org/museum/equip.php ; Chuck Greenslit, "Bendix Radio Radars", http://www.bendixradiofoundation.com/documents/Bendix%20Radio%20Radar%20History.pdf ; "RADAR." Radomes, Inc. - The Air Defense Radar Veterans Association. Accessed April 5, 2015. http://www.radomes.org/museum/equip/fps3tree.html.
