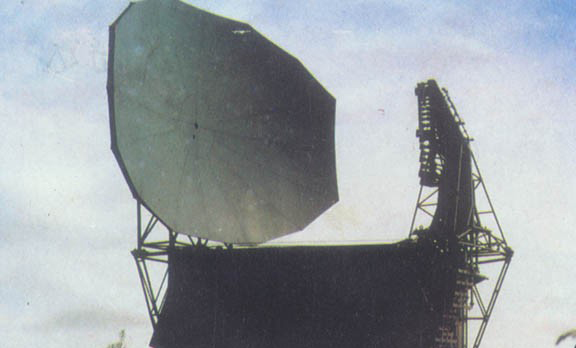

OVERVIEW: The JY-8 WALL RUST is a mobile 3-D air surveillance, target acquisition and interception control radar system operating in the G/H-band.
DETAILS: The JY-8 is capable of tracking 36 contacts. ECCM features include wide band frequency diversity and adaptive frequency change and Constant False Alarm Rate (CFAR).
Frequency: 4-8 GHz (G/H Band (NATO), C Band (IEEE)) Power output: 40 kW(average); 800 kW (peak) PRF: 365, 500, 600 pps Range Accuracy: 500 m (range), 0.3 degrees azimuth On/Off time: unknown Deploy/Stow Time 120 minutes/ 120 minutes
tgt alt. 100m: unknown km tgt alt. 18000m: unknown km Max Range: 350 km
NOTES: The JY-8 can be employed as the main radar sensor for an automated tactical defense system, or can be used as an independent radar. The system uses advanced signal/data processor techniques and is fully solid state with the exception of the magnetrons and thyratrons of the transmitters.
SOURCES: http://en.wikipedia.org/wiki/JY-8_Radar ; Bussert, James C., and Bruce A. Elleman. People's Liberation Army Navy Combat Systems Technology, 1949-2010. Annapolis, Md: Naval Institute Press, 2011, pg.
