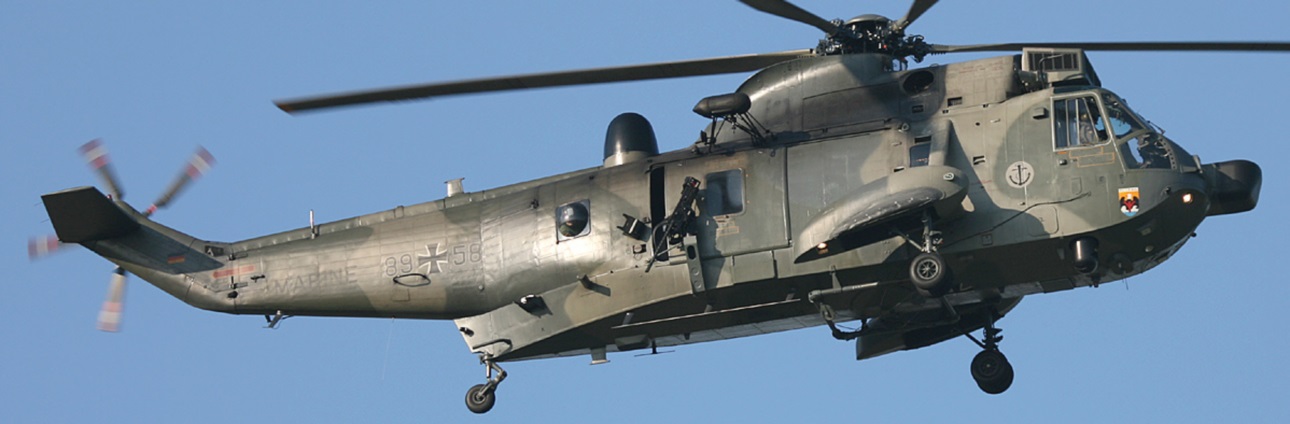

General data:
Type: Area Surveillance Crew: 4
Min Speed: 55 kt Max Speed: 140 kt
Wingspan: 5.1 m Height: 5.1 m
Length: 16.5 m Max Payload: 381 kg
Empty Weight: 5340 kg Max Weight: 10000 kg
Operator: Navy Commissioned: 1989
Propulsion: 2x Gnome H.1400-1
Sensors / EW:
AN/ALR-68(V)1 - (F-4F) ESM
RWR, Radar Warning Receiver
Max Range: 222.2 km
Sea Spray Mk3 - (F-4F) Radar
Radar, FCR, Air-to-Surface, Medium-Range
Max Range: 185.2 km
DR 2000H Mk2 - (Small MPA, Helicopter) ESM
ELINT
Max Range: 926 km
Generic FLIR - (2nd Gen, Surveillance, 8x Magnification) Infrared
Infrared, Surveillance Camera
Max Range: 55.6 km
AN/AQS-18 - (Ex-AN/AQS-13G) Dipping Sonar, Active/Passive
Dipping Sonar, Active/Passive Search & Track
Max Range: 7.4 km
Weapons / Loadouts:
Sea Skua - (1982, ASM, CL 834) Guided Weapon
Surface Max: 14.8 km.
Cargo [Air Drop, 4 tons] - Cargo
