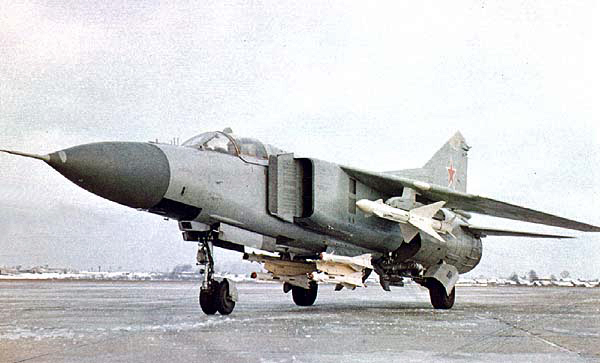

General data:
Type: Fighter Crew: 1
Min Speed: 350 kt Max Speed: 925 kt
Wingspan: 14.0 m Height: 4.8 m
Length: 16.7 m Max Payload: 2000 kg
Empty Weight: 10890 kg Max Weight: 18400 kg
Operator: Frontal Aviation [VVS] Commissioned: 1985
Propulsion: 1x R-29-300 Decommissioned: 1991
Sensors / EW:
SPO-3 Sirena-3 - ESM
RWR, Radar Warning Receiver
Max Range: 222.2 km
IRST [TP-23] - (MiG-23M) Infrared
IRST, Non-Imaging Infrared Seach and Track
Max Range: 37 km
High Lark 1 [Sapfir-23D-Sh] - (MiG-23M) Radar
Radar, FCR, Air-to-Air, Short-Range
Max Range: 55.6 km
Weapons / Loadouts:
AA-7 Apex A [R-23R, SARH] - (1974) Guided Weapon
Air Max: 29.6 km.
AA-8 Aphid [R-60T] - (1974) Guided Weapon
Air Max: 9.3 km.
800 liter Drop Tank - Drop Tank
FAB-250M-54 GPB - Bomb
Surface Max: 1.9 km. Land Max: 1.9 km.
FAB-500M-54 GPB - Bomb
Surface Max: 1.9 km. Land Max: 1.9 km.
FAB-100M-62 GPB - Bomb
Surface Max: 1.9 km. Land Max: 1.9 km.
FAB-250M-62 GPB - Bomb
Surface Max: 1.9 km. Land Max: 1.9 km.
FAB-500M-62 GPB - Bomb
Surface Max: 1.9 km. Land Max: 1.9 km.
OFAB-100-120 Frag - Bomb
Surface Max: 1.9 km. Land Max: 1.9 km.
OFAB-250-270 Frag - Bomb
Surface Max: 1.9 km. Land Max: 1.9 km.
BetAB-500SP CB [12 x Anti-Runway Penetrator Bomblets] - Bomb
Land Max: 1.9 km.
RBK-250-PTAB CB [30 x PTAB-2.5 Anti-Tank Bomblets] - Bomb
Surface Max: 1.9 km. Land Max: 1.9 km.
RBK-500-PTAB CB [268 x PTAB-1M Anti-Tank Bomblets] - Bomb
Surface Max: 1.9 km. Land Max: 1.9 km.
RBK-500-ZAB [117 x ZAB-2.5SM Incendiary] - Bomb
Surface Max: 1.9 km. Land Max: 1.9 km.
S-5K 57mm Rocket - Rocket
Surface Max: 3.7 km. Land Max: 3.7 km.
S-24B 240mm Rocket - Rocket
Surface Max: 3.7 km. Land Max: 3.7 km.
S-8KO 80mm Rocket [HEAT] - (1985) Rocket
Surface Max: 3.7 km. Land Max: 3.7 km.
S-13B 122mm Rocket [Penetrator] - (1984) Rocket
Surface Max: 3.7 km. Land Max: 3.7 km.
RN-28 Tactical Bomb [1kT Nuclear] - (Russia, 8U49, Su-24) Bomb
Surface Max: 5.6 km. Land Max: 5.6 km.
RN-40 Tactical Bomb [30kT Nuclear] - (Russia, 8U-64, MiG-23, MiG-27, MiG-29 (9-12)) Bomb
Surface Max: 5.6 km. Land Max: 5.6 km.
AA-7 Apex B [R-23T, IR] - Guided Weapon
Air Max: 29.6 km.
