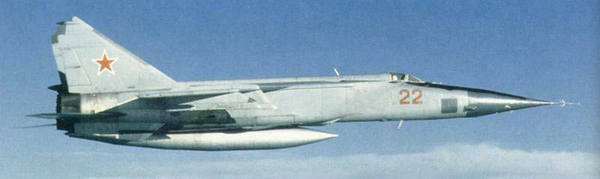

General data:
Type: Wild Weasel Crew: 1
Min Speed: 350 kt Max Speed: 1350 kt
Wingspan: 13.4 m Height: 6.0 m
Length: 22.7 m Max Payload: 4000 kg
Empty Weight: 20755 kg Max Weight: 36720 kg
Operator: Frontal Aviation [VVS] Commissioned: 1988
Propulsion: 2x R-15BD-300 Decommissioned: 1991
Sensors / EW:
Generic OECM [Advanced] - (1980s) ECM
OECM, Offensive ECM
Max Range: 0 km
Little Owl [Sych-M] - (1980s) Radar
Radar, FCR, Air-to-Air & Air-to-Surface, Short-Range
Max Range: 74.1 km
SPS-151/152/153 Lyutik - (MiG-25BM) ECM
DECM, Defensive ECM
Max Range: 0 km
Emitter Location System [Jaguar] - (MiG-25BM AS-11 Targeting) ESM
Emitter Locator (For ARM Missiles)
Max Range: 222.2 km
Weapons / Loadouts:
5280 liter Drop Tank - Drop Tank
AS-11 Kilter [Kh-58U, ARM, Semi-Ballistic] - (MiG-25BM) Guided Weapon
Surface Max: 240.8 km. Land Max: 240.8 km.
