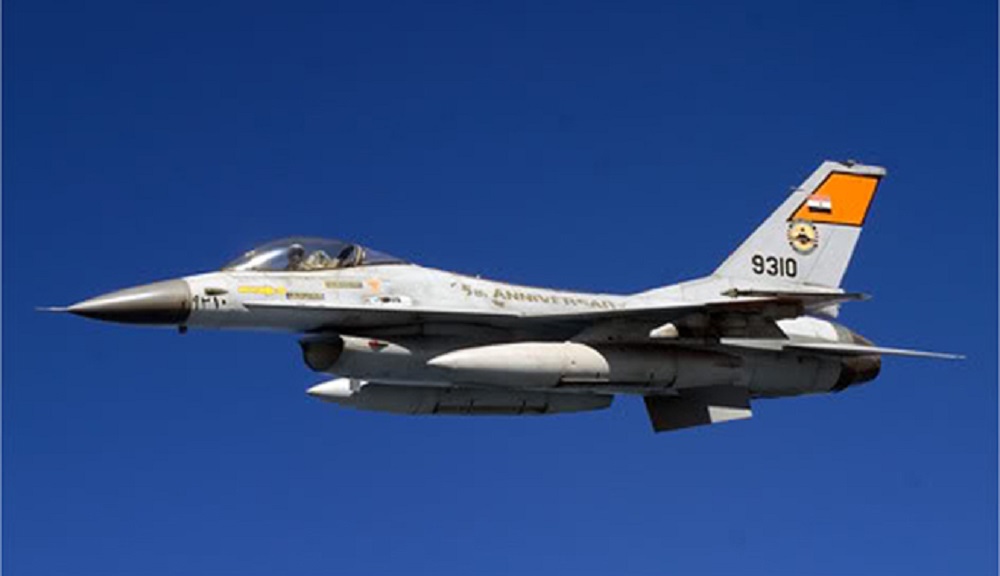

General data:
Type: Multirole (Fighter/Attack) Crew: 1
Min Speed: 350 kt Max Speed: 925 kt
Wingspan: 9.5 m Height: 4.8 m
Length: 14.5 m Max Payload: 6894 kg
Empty Weight: 8280 kg Max Weight: 19200 kg
Operator: Air Force Commissioned: 2002
Propulsion: 1x F100-PW-220
Sensors / EW:
AN/ALR-74 - ESM
RWR, Radar Warning Receiver
Max Range: 222.2 km
AN/APG-68 - Radar
Radar, FCR, Air-to-Air & Air-to-Surface, Medium-Range
Max Range: 111.1 km
Weapons / Loadouts:

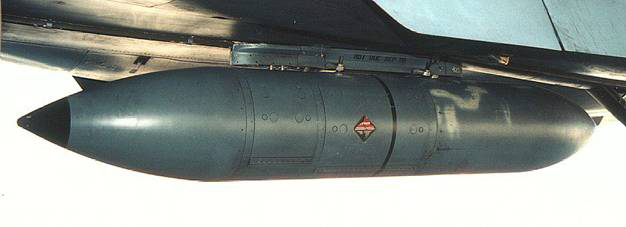

300 USG Drop Tank - Drop Tank
370 USG Drop Tank - Drop Tank
AIM-7M Sparrow III - (1985) Guided Weapon
Air Max: 101.9 km.
AIM-9M Sidewinder - (1984) Guided Weapon
Air Max: 18.5 km.
Sharpshooter Pod [FLIR + LRMTS, 12k ft] - (AN/AAQ-19) Sensor Pod
Pathfinder Pod [FLIR + TFR] - (AN/AAQ-20) Sensor Pod
AGM-65B Maverick EO - (1976) Guided Weapon
Surface Max: 11.1 km. Land Max: 11.1 km.
AGM-65D Maverick IR - (1984) Guided Weapon
Surface Max: 14.8 km. Land Max: 14.8 km.

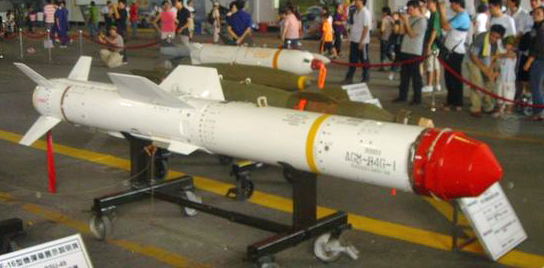

AGM-84G Harpoon ICR - (1998) Guided Weapon
Surface Max: 138.9 km.
AN/AXQ-14 Datalink Pod - Sensor Pod

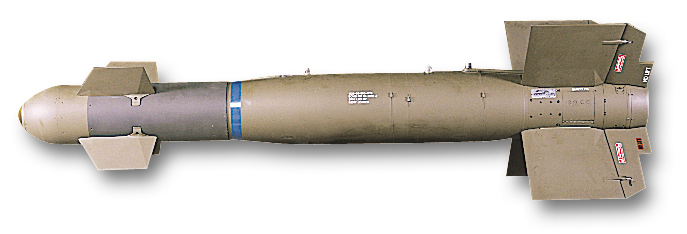

GBU-15(V)2/B CWW IIR [Mk84] - (1986) Guided Weapon
Surface Max: 27.8 km. Land Max: 27.8 km.
Mk20 Rockeye II CB [247 x Mk118 Dual Purpose Bomblets] - (1969, Mk7 Dispenser) Bomb
Surface Max: 1.9 km. Land Max: 1.9 km.
Mk82 500lb LDGP - (1954) Bomb
Surface Max: 1.9 km. Land Max: 1.9 km.
Mk84 2000lb LDGP - (1955) Bomb
Surface Max: 1.9 km. Land Max: 1.9 km.
