General data:

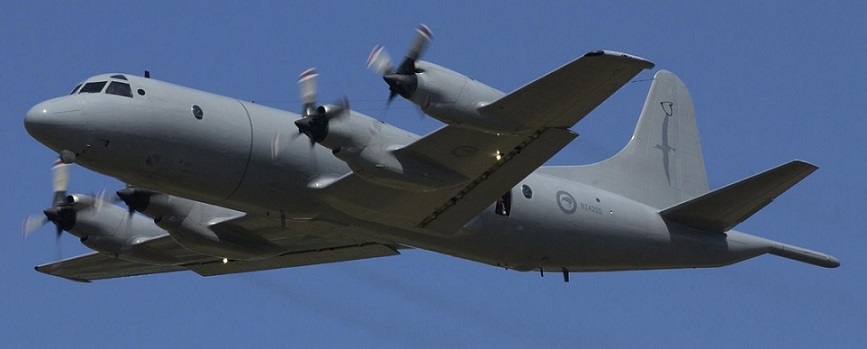

Type: Maritime Patrol Aircraft (MPA) Crew: 10
Min Speed: 205 kt Max Speed: 410 kt
Wingspan: 30.4 m Height: 10.3 m
Length: 35.6 m Max Payload: 9070 kg
Empty Weight: 27890 kg Max Weight: 61235 kg
Operator: Navy Commissioned: 2012
Propulsion: 4x T56-A-14
Sensors / EW:
AN/ALR-66(V)2 - (P-3B) ESM
ELINT w/ OTH Targeting
Max Range: 926 km
MX-20 Hi-Mag [FLIR] - (Group, AN/ASX-4 AIMS) Infrared
Infrared, Surveillance FLIR
Max Range: 55.6 km
MX-20 3-CCD [CCD] - (Group, AN/ASX-4 AIMS) Visual
LLTV, Surveillance Camera
Max Range: 55.6 km
MX-20 1-CCD [CCD] - (Group, AN/ASX-4 AIMS) Visual
LLTV, Surveillance Camera
Max Range: 55.6 km
MX-20 [Laser Rangefinder] - (Group, AN/ASX-4 AIMS) Laser Rangefinder
Laser Rangefinder
Max Range: 0 km
EL/M-2022A(V)3 - (Group, AN/ASX-4 AIMS) Radar
Radar, Surface Search, Long-Range
Max Range: 370.4 km
AN/ASQ-10A - (Group, AN/ASX-4 AIMS) MAD
MAD
Max Range: 1.9 km
Weapons / Loadouts:
Mk46 LWT Mod 2 - (1972) Torpedo
Subsurface Max: 5.6 km.
AN/SSQ-41B Jezebel LOFAR - (1978, A-Size, 31 Chn, 18/304m, Most Widely Used) Sonobuoy
AN/SSQ-47 Julie Active Range-Only - (1967-1995, SSQ-522, SSQ-947, HQS-31, A-Size, 12 Chn, 18/243m, 30min, Ranger Buoy, Exported) Sonobuoy
