General data:
Type: Recon Crew: 2
Min Speed: 350 kt Max Speed: 925 kt
Wingspan: 11.7 m Height: 5.02 m
Length: 19.2 m Max Payload: 8480 kg
Empty Weight: 13755 kg Max Weight: 28030 kg
Operator: Air Force Commissioned: 2003
Propulsion: 2x J79-GE-17
Sensors / EW:
AN/APD-102 - Radar
SLAR, Side-Looking Airborne Radar
Max Range: 74.1 km
KS-87 Frame Camera - Visual
Visual, Reconnaissance Frame Camera
Max Range: 9.3 km
KA-91 Panoramic Camera - Visual
Visual, Reconnaissance Frame Camera
Max Range: 9.3 km
AN/ALR-66(VE) - (Helicopter, A-7H) ESM
RWR, Radar Warning Receiver
Max Range: 222.2 km
AN/AAD-5/RS-720 - (Helicopter, A-7H) Infrared
Infrared, Reconnaissance Frame Camera
Max Range: 9.3 km
AN/APQ-99 - (Helicopter, A-7H) Radar
Radar, Ground Mapping
Max Range: 74.1 km
Weapons / Loadouts:
370 USG Drop Tank - Drop Tank

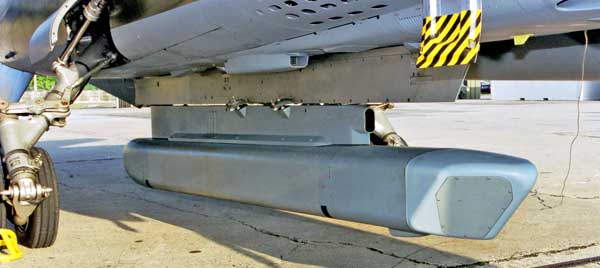

AN/ALQ-119 DECM Pod - Sensor Pod
600 USG Drop Tank - Drop Tank
ASTAC Pod [ESM] - Sensor Pod
