General data:

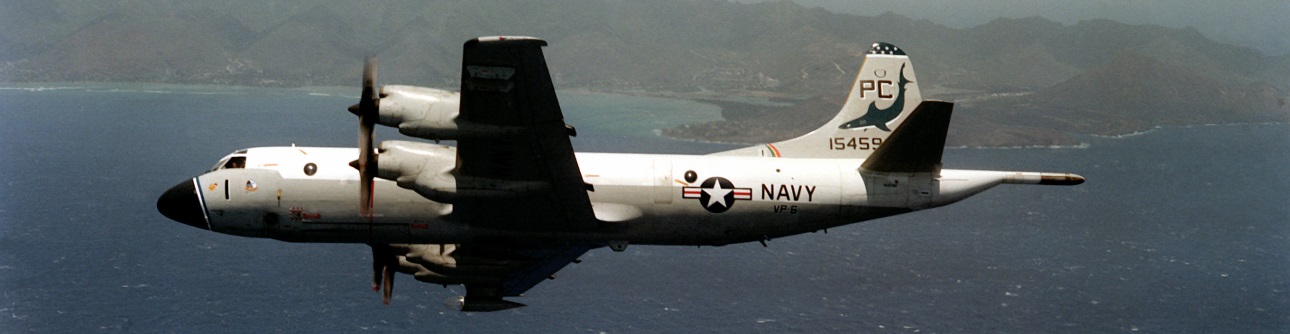

Type: Maritime Patrol Aircraft (MPA) Crew: 10
Min Speed: 205 kt Max Speed: 410 kt
Wingspan: 30.4 m Height: 10.3 m
Length: 35.6 m Max Payload: 9070 kg
Empty Weight: 27890 kg Max Weight: 61235 kg
Operator: Navy Commissioned: 1978
Propulsion: 4x T56-A-14 Decommissioned: 1985
Sensors / EW:
AN/APS-80A - Radar
Radar, Surface Search, Medium-Range
Max Range: 148.2 km
AN/AAS-36 IRDS - (P-3C Update II) Infrared
Infrared, Surveillance FLIR
Max Range: 55.6 km
AN/ALR-66(V)3 - (P-3C, AN/ALR-606) ESM
ELINT w/ OTH Targeting
Max Range: 926 km
AN/ASQ-10A - (P-3C, AN/ALR-606) MAD
MAD
Max Range: 1.9 km
Weapons / Loadouts:
Mk46 LWT Mod 2 - (1972) Torpedo
Subsurface Max: 5.6 km.
AN/SSQ-41B Jezebel LOFAR - (1978, A-Size, 31 Chn, 18/304m, Most Widely Used) Sonobuoy
AN/SSQ-50B CASS - (A-Size, 18/457m, 1hr) Sonobuoy
Mk52 [1000lb] - (1962) Bottom Mine
Mk55 [2000lb] - (1962, 180m max depth) Bottom Mine
B57 Multipurpose Sub Bomb [20kT Nuclear] - (Aerial) Depth Charge
Subsurface Max: 0.9 km.
