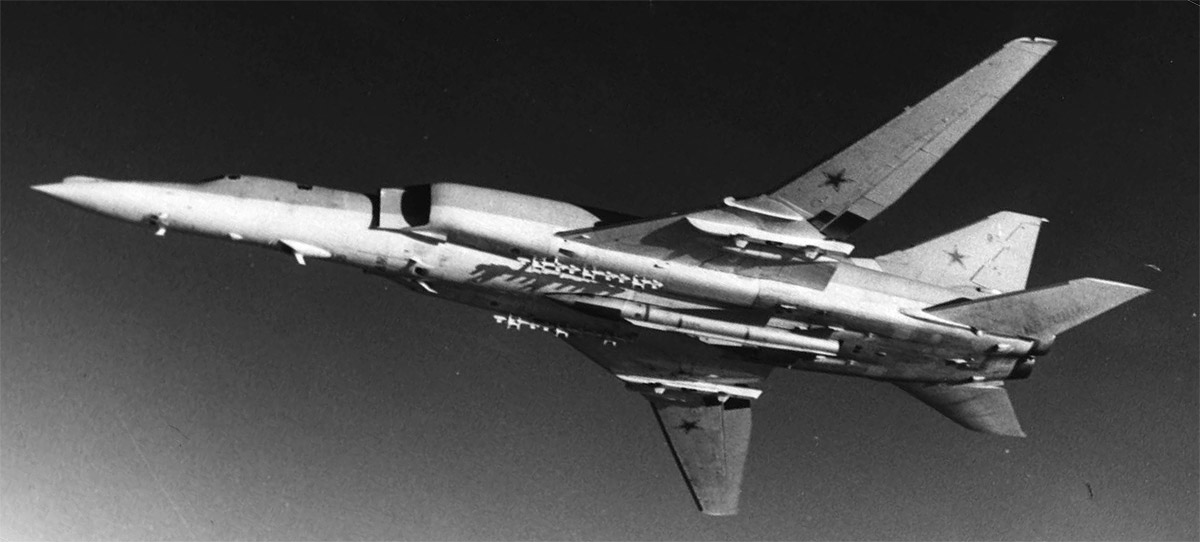

General data:
Type: Bomber Crew: 4
Min Speed: 400 kt Max Speed: 920 kt
Wingspan: 34.3 m Height: 11.1 m
Length: 41.5 m Max Payload: 24000 kg
Empty Weight: 54000 kg Max Weight: 122000 kg
Operator: Navy Commissioned: 1992
Propulsion: 2x NK-22
Sensors / EW:
Fan Tail [PRS-4KM Krypton-B] - Radar
TWR, Tail Warning Radar & Tail Gun Director
Max Range: 18.5 km
Down Beat [PNA-B Rubin] - (Tu-22M-2, Tu-95K-22) Radar
Radar, FCR, Air-to-Surface, Long-Range
Max Range: 444.5 km
L-082 Mak-UL - (BKO-2 Karpaty EW Suite) Infrared
MAWS, Missile Approach Warning System
Max Range: 9.3 km
TP-1 Tail Gun TV Sighting System - (Tu-22M) Visual
Visual, Weapon Director TV Camera
Max Range: 74.1 km
AG-56 - (Tu-22M) ECM
DECM, Defensive ECM
Max Range: 0 km
Bomb Sight [OPB-15T Groza] - (Tu-22M, Tu-160) Visual
Visual, Bomb Sight
Max Range: 3.7 km
Avtomat 2/3 - (Tu-22M-2/3) ESM
RWR, Radar Warning Receiver
Max Range: 222.2 km
Weapons / Loadouts:
OFAB-100-120 Frag - Bomb
Surface Max: 1.9 km. Land Max: 1.9 km.

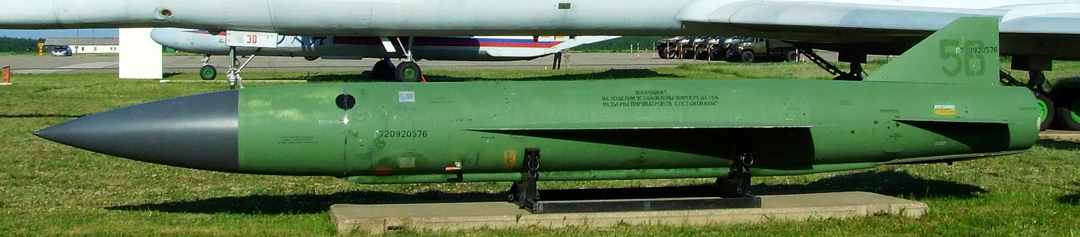

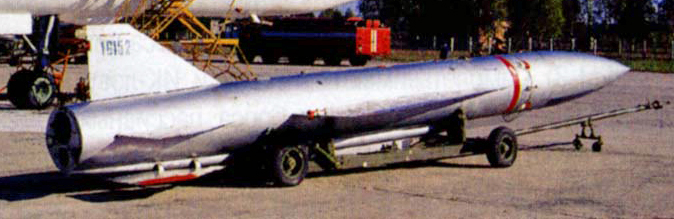

AS-4 Kitchen A Mod 2 [Kh-22M ASM] - (1976, Tu-22M-2, Tu-22KD) Guided Weapon
Surface Max: 398.2 km.
AS-4 Kitchen B Mod 2 [Kh-22MA INS+TERCOM] - (1976, Tu-22M-2, Tu-22KD) Guided Weapon
Land Max: 555.6 km.
FAB-250M-54 GPB - Bomb
Surface Max: 1.9 km. Land Max: 1.9 km.
FAB-500M-54 GPB - Bomb
Surface Max: 1.9 km. Land Max: 1.9 km.
FAB-1500M-54 GPB - Bomb
Surface Max: 1.9 km. Land Max: 1.9 km.
FAB-3000M-46 GPB - Bomb
Surface Max: 1.9 km. Land Max: 1.9 km.
OFAB-250-270 Frag - Bomb
Surface Max: 1.9 km. Land Max: 1.9 km.
RN-40 Tactical Bomb [30kT Nuclear] - (Russia, 8U-64, MiG-23, MiG-27, MiG-29 (9-12)) Bomb
Surface Max: 5.6 km. Land Max: 5.6 km.
RN-42 Strategic Bomb [200kT Nuclear] - (Russia) Bomb
Surface Max: 5.6 km. Land Max: 5.6 km.

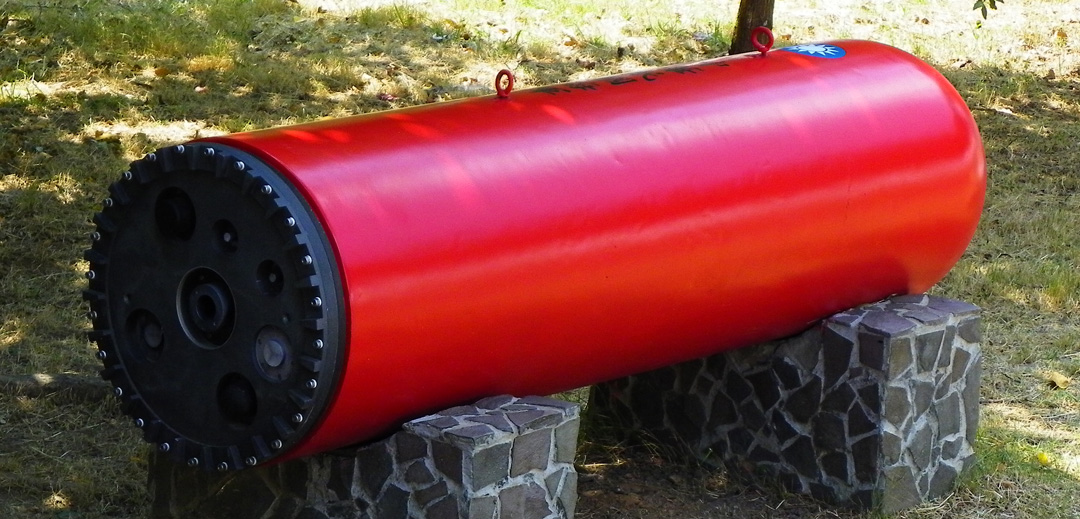

Generic Mine [Bottom, Acoustic Narrow-Band Fuze & Target Discrimination] - (Advanced) Bottom Mine
