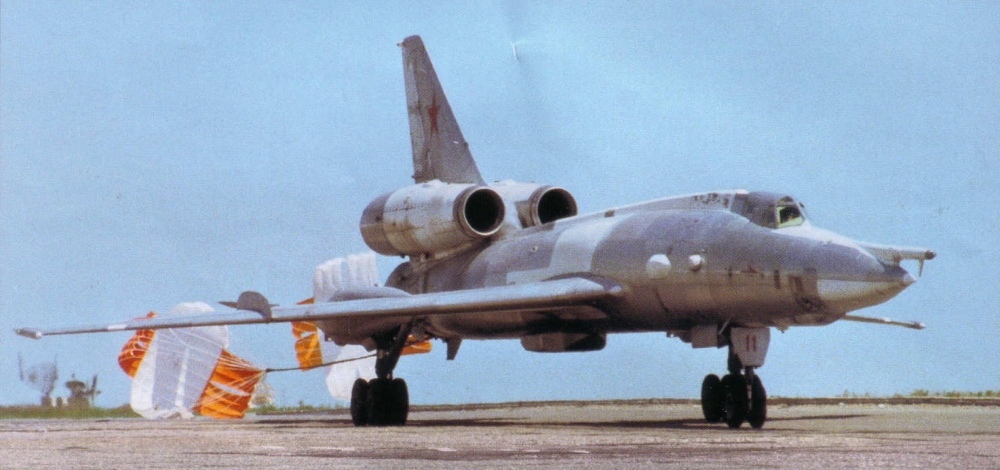

General data:
Type: Recon Crew: 3
Min Speed: 400 kt Max Speed: 750 kt
Wingspan: 23.6 m Height: 10.0 m
Length: 41.6 m Max Payload: 12000 kg
Empty Weight: 47300 kg Max Weight: 94000 kg
Operator: Naval Aviation [AV-MF] Commissioned: 1983
Propulsion: 2x RD-7M-2 Decommissioned: 1991
Sensors / EW:
Generic Visual Reconnaissance Camera - (4x Magnification) Visual
Visual, Reconnaissance Frame Camera
Max Range: 9.3 km
Fox Flat SLAR [Shompol] - (Tu-22RDM, M-202) Radar
Radar, Surface Search, Medium-Range
Max Range: 111.1 km
SRS-7 Romb-4B - (Tu-22R, Tu-95MR, Tu-95RT, Il-20M) ESM
ELINT
Max Range: 926 km
Bomb Sight [OPB-15V] - (Tu-22) Visual
Visual, Bomb Sight
Max Range: 3.7 km
SPO-15 Beryoza [L-006] - (Tu-22) ESM
RWR, Radar Warning Receiver
Max Range: 222.2 km
SPS-151/152/153 Lyutik - (Tu-22) ECM
DECM, Defensive ECM
Max Range: 0 km
Short Horn [Rubin-1A] - (Tu-22, Smaller antenna) Radar
Radar, Surface Search, Long-Range
Max Range: 324.1 km
Weapons / Loadouts:
OFAB-100-120 Frag - Bomb
Surface Max: 1.9 km. Land Max: 1.9 km.
FAB-250M-54 GPB - Bomb
Surface Max: 1.9 km. Land Max: 1.9 km.
FAB-500M-54 GPB - Bomb
Surface Max: 1.9 km. Land Max: 1.9 km.
FAB-1500M-54 GPB - Bomb
Surface Max: 1.9 km. Land Max: 1.9 km.
FAB-3000M-46 GPB - Bomb
Surface Max: 1.9 km. Land Max: 1.9 km.
OFAB-250-270 Frag - Bomb
Surface Max: 1.9 km. Land Max: 1.9 km.
RN-40 Tactical Bomb [30kT Nuclear] - (Russia, 8U-64, MiG-23, MiG-27, MiG-29 (9-12)) Bomb
Surface Max: 5.6 km. Land Max: 5.6 km.
RN-42 Strategic Bomb [200kT Nuclear] - (Russia) Bomb
Surface Max: 5.6 km. Land Max: 5.6 km.
Generic Mine [Bottom, Acoustic Narrow-Band Fuze & Target Discrimination] - (Advanced) Bottom Mine
