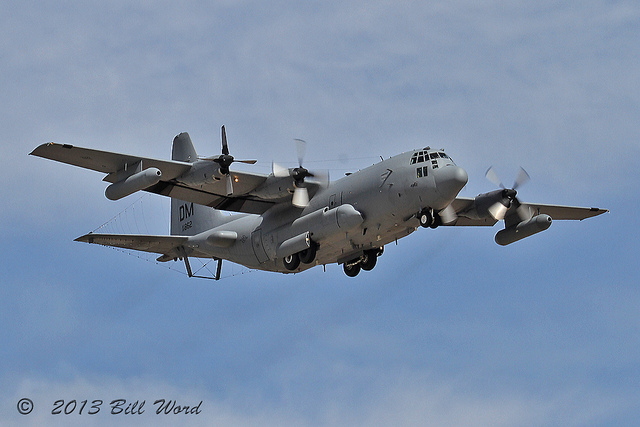

General data:
Type: Electronic Warfare Crew: 5
Min Speed: 180 kt Max Speed: 325 kt
Wingspan: 40.4 m Height: 11.6 m
Length: 29.8 m Max Payload: 19090 kg
Empty Weight: 34400 kg Max Weight: 70300 kg
Operator: Air Force Commissioned: 1983
Propulsion: 4x T56-A-15
Sensors / EW:
AN/ALQ-175 - (EC-130H) ECM
DECM, Defensive ECM
Max Range: 0 km
Generic Infrared Line Scanner (IRLS) - (EC-130H) Infrared
IRLS, Non-Imaging Infrared Line Scanner
Max Range: 9.3 km
AN/ALQ-173(V) - (EC-130H) ECM
OECM & DECM, Offensive & Defensive ECM
Max Range: 0 km
AN/ALR-63 - (EC-130H) ESM
ELINT
Max Range: 926 km
AN/APN-59 - (EC-130H) Radar
Radar, Weather and Navigation
Max Range: 74.1 km
Generic FLIR - (2nd Gen, Surveillance, 8x Magnification) Infrared
Infrared, Surveillance Camera
Max Range: 55.6 km
Generic Comms Jammer [Advanced] - (2000s) ECM
Communications Jammer
Max Range: 0 km
