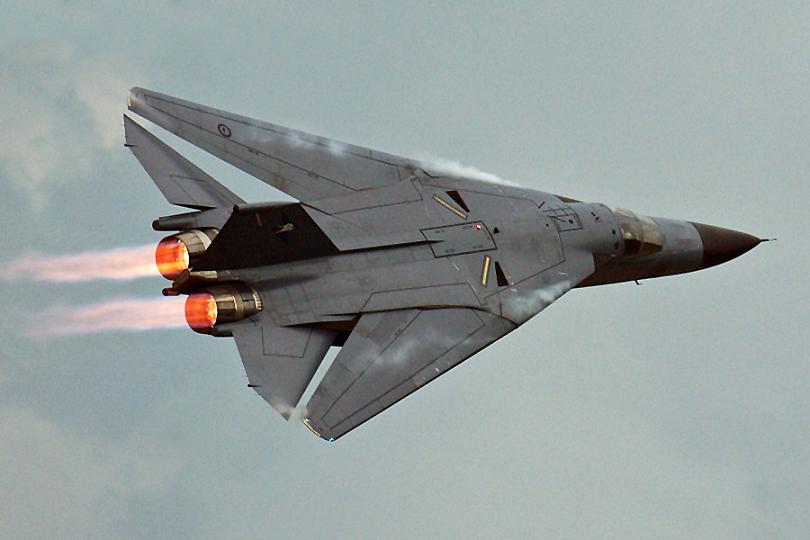

General data:
Type: Attack Crew: 2
Min Speed: 350 kt Max Speed: 925 kt
Wingspan: 21.3 m Height: 6.1 m
Length: 22.4 m Max Payload: 11500 kg
Empty Weight: 21400 kg Max Weight: 42000 kg
Operator: Air Force Commissioned: 2006
Propulsion: 2x TF30-PW-109 Decommissioned: 2010
Sensors / EW:
AN/APQ-171 - (F-111F) Radar
TFR, Terrain Following Radar
Max Range: 3.7 km
AN/APQ-169 - (F-111C AUP) Radar
Radar, FCR, Air-to-Air & Air-to-Surface, Short-Range
Max Range: 74.1 km
AN/AAR-34 - (F-111C AUP) Infrared
MAWS, Missile Approach Warning System
Max Range: 9.3 km
AN/ALQ-94 - (F-111C AUP) ECM
DECM, Defensive ECM
Max Range: 0 km
AN/ALR-62 TTWS Compass Sail - (F-111C AUP) ESM
RWR, Radar Warning Receiver
Max Range: 222.2 km
KB-18A Strike Camera - (F-111) Visual
Visual, Strike Camera
Max Range: 0.9 km
Weapons / Loadouts:
AN/ASW-55 Datalink Pod [Skyshield] - (AGM-142) Sensor Pod
AGM-142E Popeye IIR [Penetrator] - (Australia) Guided Weapon
Surface Max: 74.1 km. Land Max: 74.1 km.
AIM-9M Sidewinder - (1984) Guided Weapon
Air Max: 18.5 km.
EL/L-8222 ASSP DECM Pod - Sensor Pod

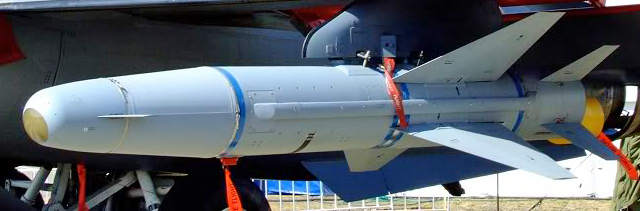

AGM-84D Harpoon IC - (1986) Guided Weapon
Surface Max: 138.9 km.
GBU-10E/B Paveway II LGB [Mk84] - (USAF) Guided Weapon
Surface Max: 7.4 km. Land Max: 7.4 km.
AN/AVQ-26 Pave Tack Pod [FLIR + LRMTS, 12k ft] - (1980) Sensor Pod
GBU-12B/B Paveway II LGB [Mk82] - Guided Weapon
Surface Max: 7.4 km. Land Max: 7.4 km.
Mk82 500lb LDGP - (1954) Bomb
Surface Max: 1.9 km. Land Max: 1.9 km.
Mk84 2000lb LDGP - (1955) Bomb
Surface Max: 1.9 km. Land Max: 1.9 km.
600 USG Drop Tank - Drop Tank
