General data:

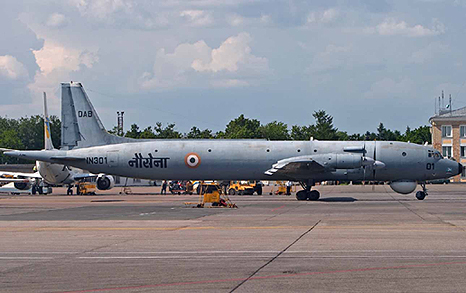

Type: Maritime Patrol Aircraft (MPA) Crew: 8
Min Speed: 215 kt Max Speed: 410 kt
Wingspan: 37.4 m Height: 10.7 m
Length: 39.6 m Max Payload: 0 kg
Empty Weight: 33700 kg Max Weight: 63500 kg
Operator: Navy Commissioned: 1977
Propulsion: 4x AI-20M
Sensors / EW:
Generic Weather Radar - Radar
Radar, Weather
Max Range: 64.8 km
Wet Eye [Berkut] - Radar
Radar, Surface Search, Medium-Range
Max Range: 277.8 km
MAD [APM-60] - (Berkut/Kalmar System, Ka-25, Mi-14, 1st Gen) MAD
MAD
Max Range: 1.9 km
SPO-10 Sirena-3M - (Berkut/Kalmar System, Ka-25, Mi-14, 1st Gen) ESM
RWR, Radar Warning Receiver
Max Range: 222.2 km
Generic FLIR - (1st Gen, Surveillance & Periscope Search) Infrared
Infrared, Surveillance Camera
Max Range: 27.8 km
Weapons / Loadouts:
AT-2M - (1975?) Torpedo
Subsurface Max: 1.9 km.
RGB-2 [NATO BM-2, Track, Passive Bearing-Only] - (Berkut System, 1969, 20m, 45min) Sonobuoy
RGB-1 [NATO BM-1, Search, Passive Omni] - (Berkut System, 1969, 35/70m, 3hr) Sonobuoy
RGB-3 [Track, Active-Only] - (Berkut System, 5min) Sonobuoy
