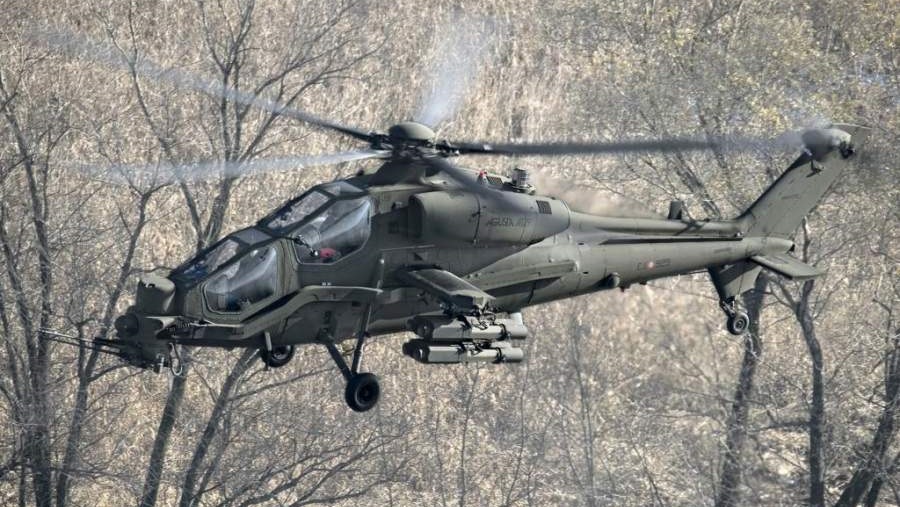

A-129CBT Mangusta [A-129EES] - 2004, 15x, Redesignated AH-129C in 2012
| General data: | |
|---|---|
| Type: Attack | Crew: 2 |
| Min Speed: 55 kt | Max Speed: 150 kt |
| Wingspan: 3.3 m | Height: 3.4 m |
| Length: 12.3 m | Max Payload: 0 kg |
| Empty Weight: 2530 kg | Max Weight: 4600 kg |
| Operator: Army | Commissioned: 2004 |
| Propulsion: 2x Gem 2-1004D |
| Sensors / EW: |
|---|
| RALM-01/V2 - ESM LWR, Laser Warning Receiver Max Range: 11.1 km |
| HIRNS+ - Infrared Infrared, Weapon Director & Target Search, Tracking and Identification Camera Max Range: 55.6 km |
| ELT-554 - ECM DECM, Defensive ECM Max Range: 0 km |
| AN/ALQ-144(V)1 - ECM IRCM Max Range: 0 km |
| ELT-156X(V)4 - (A-129EES) ESM RWR, Radar Warning Receiver Max Range: 222.2 km |
| Weapons / Loadouts: |
|---|
| AIM-92E Stinger ATAS RPM Blk I -
(1998) Guided Weapon Air Max: 5.6 km. |
| BGM-71E TOW 2A -
(1987, DS) Guided Weapon Surface Max: 3.7 km. Land Max: 3.7 km. |
| HYDRA 70mm Rocket -
(Mk 66 Rocket, M229 Warhead, M423/7 Fuze) Rocket Surface Max: 3.7 km. Land Max: 3.7 km. |
| 12.7mm/50 MG Burst [10 rnds] -
(Facility/Ship, No Anti-Air Capability) Gun Surface Max: 1.9 km. Land Max: 1.9 km. |
